The main motive of the Dynamics project is to make mobile IP more flexible by implementing a prototype version of a hierarchical IP tunnel for a IPv4 network.
The Dynamics group will write the implementation from scratch. The implementation relies on the tunneling and advanced routing features of development version (v2.1) of the Linux-kernel and the upcoming stable version (v2.2).
Three main modules, the mobile home, foreign agent and home agent, will be developed. These modules depend on modules that provide an interface to the kernel functionality. An API module that provides functionality for making programs that control and monitor the main modules will also be developed.
Communication between the main modules is done by using Berkeley IP sockets. The message formats used are as defined in mobile IP related Internet standards and drafts.
The mobile nodes are authenticated with message authentication code from the payload of registration requests based on the MD5 hash algorithm. A publicly available implementation of the algorithm will be used. The foreign agents use public key cryptosystem to get the session keys generated by the home agents. A publicly available RSA implementation will be selected for this purpose.
The Linux system logger is used for all log messages generated by the modules.
All main modules will use a general configuration file format and API for accessing the data.
The main motive of the Dynamics project is to make a prototype version of a hierarchical IP tunnel for IPv4 network. The project deliverables are made for the MART-project. The main goal is to accomplish a system that can be further used and developed in research of the mobile IP field. More thorough description of the project and its goals is available in the beginning of the project plan.
This project will use existing solutions and solution proposals as far as possible. This will prevent extra work of "reinventing the wheel", and should lead to a more stable implementation. The main task for this project is to select the suitable solutions and to implement a working prototype of the hierarchical IP tunnel.
Chapter 1.2 (Framework) of the functional definition gives the Internet standards and drafts that our implementation depend on. The most import are: IP Mobility Support" [RFC2002], "IP Keys for Route Optimization" [REGKEY] (work in progress) and ICMP Router Discovery Messages [RFC1256]. These documents describe the message formats that we have chosen to use.
A compact summary of the document is given above before the rest of the document. Chapter 1 (Introduction) explains briefly the project and the contents of this document. Chapter 2 (General description of the system) gives a brief summary of the general description of the system in various documents. Chapter 3 (System architecture description) describes the main design decisions and gives an overview of the system architecture. Chapter 4 (Module and process descriptions) gives an overview of each module, defines their interfaces, attributes and intercommunication mechanisms. In chapter 5 (Module implementation description) state machines and pseudocode describes the functionality of the mobile node, foreign agent and home agent.
Chapter 2 of the functional definition (Overview) gives a closer consideration of the system and especially of its functionality. It also describes the security design of the system.
Section 4.1 of the project plan (Software tools and hardware resources) defines the implementation environment and the tools to be used.
One of our main design principles was not to put in any functionality beyond the requirements, but still provide the possibility to add further extensions and modifications later on. Keeping the solution as simple as possible was also requested by the customer.
We tried to find a solution where we would need to modify kernel code as little as possible and ultimately not at all, as coding and modifying kernel space code is normally more time consuming and complex than writing user space code. It was found out that by using the current development version of the Linux-kernel (v2.1), and the upcoming stable version (v2.2), we could exploit the new tunneling and advanced routing features to avoid kernel modification.
We also tried to find mobile IP implementations for Linux that we could extend or get ideas from. See appendix for list of implementations that we examined. However, none of the implementations satisfied our requirements, so we decided to write our implementation from scratch.
The modules we will implement can be divided into four categories: the main modules (mobile node, foreign agent and home agent), modules that provide an interface to the kernel (ARP, tunneling and routing), generic support modules (mobility bindings, cryptography and configuration) and an API module.

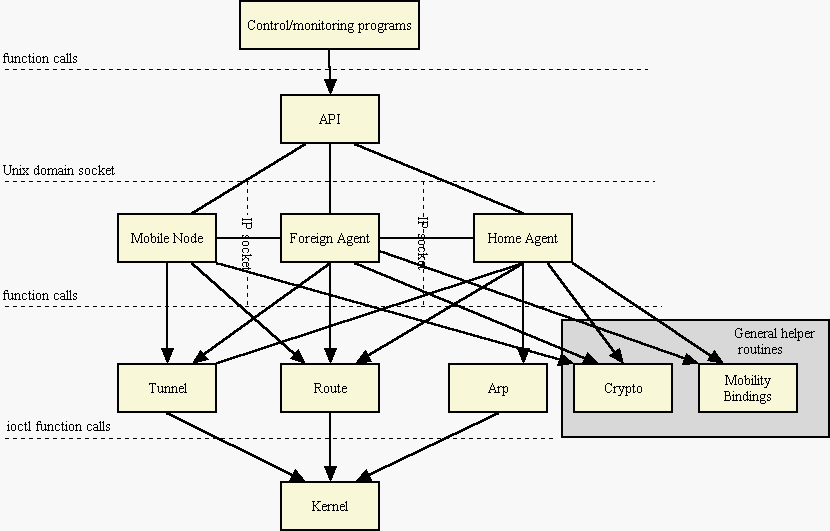

The following diagram shows the dependencies between the different modules.
The main modules provide the core functionality of the system. Communication between the modules is done through Berkeley sockets using the IP protocol. The exact structure and contents of the messages sent between the mobile node and the mobility agents is described in the Message Formats and Contents document.
The API module functions as an interface between support tools (such as control and monitoring) and the main modules. This module communicates with the main modules through Berkeley sockets using the Unix domain protocol.
The kernel interface provides functions that are easier to use than direct ioctl calls (man 2 ioctl).
The general support modules provide functions that are common to two or more modules.
Support part and signaling part will be integrated into one module, which runs on a single process. This process waits for signaling messages, library calls (through special socket interface) and timers. When library socket is activated, it is served immediately. Results are sent back and if the library call results in state transition, the transition is processed. In case of a signaling message or timer, the current signaling state is used.
For now only bi-directional (full) tunneling mode is supported. However, the other tunneling modes are easy to implement based on the code for bi-directional tunneling. In triangle tunneling, sent packets will not be wrapped and in no-tunneling mode we just do not make the tunnel and use the computer directly with local network.
The Mobile Node will be preconfigured with following data. This data
will be read via the configuration file interface on startup and on explicit
request.
Type | Variable or data structure | Explanation |
int | retry_interval | Interval in milliseconds, how long the agent waits a reply before sending the message again. |
int | max_retry_count | Number on tries to get the message through before giving up. |
int | default_tunnel_lifetime | Requested tunnel lifetime. |
ip_address | mobile_address | address of mobile |
ip_address | home_agent_address | address of home agent |
char* | shared_secret | Shared secret with the home agent |
int | spi | Associated authentication method (used to connect the correct shared secret in the home agent to this mobile node) |
Type | Variable or data structure | Explanation |
ip_address | fa_address | Address of the closest foreign agent |
int | sequence_number | Sequence number of the last heard advertisement |
int | api_call_progressing | Identifies progressing API call. (None, connect or confirm) |
int | api_call_socket | Waiting socket connection for blocking API call |
int | state | Current state of the machine |
int | retry_count | Tries left to re-send the message |
key | session_key | The session key used in signaling |
Timer | Explanation |
lifetime_left | Indicates the remaining lifetime for the tunnel |
advertisement_timer | Remaining time for the last heard advertisement |
reply_timer | Timer for reply |
Communication with the API module is done over two Unix domain sockets as described in the API section.
The agent reacts to SIGHUP, SIGTERM and SIGINT signals. SIGHUP cauces the configuration file to be reread. The other two signals will make the process exit in a clean way.
There are several possible error situation mainly caused by the network environment. General exceptional situations are:
The module is tested according to the test plan.
The Foreign Agent will be preconfigured with the following data. This data will be read via the configuration file interface on startup and on explicit request.
Type | Variable or data structure | Explanation |
int | adv_interval | Agent Advertisement broadcast interval. |
int | tunnel_modes | Allowed tunneling modes. |
ip_address | upper_fa | Next higher Foreign Agent address |
ip_address | highest_fa | Highest Foreign Agent address |
int | max_bindings | Number of maximum allowed bindings |
char | net_if[8] | Interface of local network, e.g. "eth0" |
int | spi | Associated authentication method |
int | default_tunnel_lifetime | Default tunnel lifetime in seconds |
Please refer to the configuration file specification document for a concrete view of configurable parameters. The concrete use of these variables may be seen from the Foreign Agent pseudocode presentation.
Type | Variable or data structure | Explanation |
HASH | bindings_hash | A hash table of valid Mobility Bindings. See section on Mobility Bindings. |
HASH | tunnels_hash | A hash table of tunnels. Contains dynamic tunnel data. |
Timer | Explanation |
Binding timer | Shows the time when the binding is to be expired. |
Wait reply timer | Shows the time that a registration request for a certain binding has been on its way without being acknowledged. |
Advertisement timer | Shows the time when the next Mobility Agent Advertisement message should be send. |
Socket select timer | Select(2) takes a timer parameter. The value of this parameter tells how long to wait any changes in the sockets. Bindings have expiration times. Also ICMP Agent Advertisement messages are sent periodically. This timer variable is initialized every round to the next expiration time of the binding or the time of the next advertisement message. |
The Foreign Agent needs to communicate with:
The Foreign Agent operations are defined in detail in the Foreign Agent state machine document. The Foreign Agent state machine picture illustrates the entire Foreign Agent daemon operation. The Foreign Agent single binding state machine picture illustrates the states of a single binding from the signaling point of view.
The Foreign Agent has the following external interfaces:
Communication with the API module is done over two Unix domain sockets as described in the API section.
The foreign agent reacts to SIGHUP, SIGTERM and SIGINT signals. SIGHUP signal causes the configuration file to be reread. The other two signals will make the process exit in a clean way.
The Foreign Agent is dependent on the routing, cryptographic, bindings, and tunnel modules. Configuration data is read by using the configuration module interface.
There are several possible error situations, caused mainly by the network environment. General exceptional situations are:
The message structure may be erroneous
The message data may be corrupted
The message will be silently discarded. This may result in unnecessary binding timeouts.
The message is sent upwards to Home Agent
A Registration Reply message is lost (on its way up or down)
A Registration Request is received just before the (de)Registration Reply (with expiration time left set to 0) arrives to the Foreign Agent.
When the Foreign Agent receives a Registration Request it creates a unconfirmed binding for the request. When the Registration Reply comes back from Home Agent the binding is confirmed. In this situation the confirmed binding (old) is removed and the unconfirmed binding is confirmed after the reply from Home Agent.
The program exits and informs about the error.
The error situations are covered by the Foreign Agent state machine document.
The module is tested according to the test plan.
Specific data structures in the Foreign Agent:
Data structure | Explanation |
Bindings | The structure that contains all the bindings associated to the Foreign Agent and the Mobile Nodes it serves. |
Messages | Structure to handle the messages in higher level. Pointers to extensions in the signalling packets and variables to indicate values of the message fields. Presented in high level as a parsed signalling messages. |
The Home Agent is responsible for encapsulating and forwarding packets to its Mobile Nodes when they are away from their Home Network. It also decapsulates and forwards tunneled packets originating from its Mobile Nodes.
The Home Agent needs to communicate with:
Communication with the Foreign Agents and Mobile Nodes is done with Berkeley IP sockets. The Home Agent listens to ICMP agent solicitation messages from mobile nodes on a "packet" socket. ICMP agent advertisement messages are sent in reply to these messages on the same socket. The home agent also listens to Registration Requests on a UDP socket, port 434, originating from foreign agents or mobile nodes. If the request is authorized then a mobility binding for the requested mobile node will be established or, if one already exists, updated. The request is then answered with an appropriate Registration Reply.
Communication with the API module is done over two Unix domain sockets as described in the API section.
The home agent reacts to SIGHUP, SIGTERM and SIGINT signals. SIGHUP cauces the configuration file to be reread. The other two signals will make the process exit in a clean way.
The home agent depends on the ARP, routing, cryptographic, bindings and tunnel modules. Configuration data is read by using the configuration module interface.
The Home Agent will be preconfigured with the following data. This data will be read via the configuration file interface on startup and on explicit request.
int max_reg_time
defines the maximum time a
mobility binding will be valid before a re-registration is
required.
int max_bindings
defines maximum number of mobiles
that are allowed to be registered at the same time. When the
number of mobility bindings reach this limit, further
registrations will be rejected.
char arp_if[8]
is the network interface where the Mobile Node will listen to
packets destined for registered mobile nodes.
char localtunnel_if[8]
is the network interface to
where the local tunnel interface will be attached.
HASH auth_mns_hash
is a hash table of IP addresses of the Mobile Nodes that are allowed to register.
HASH sec_assocs_hash
is a hash table of security associations that are used to authenticate
Mobile Nodes as they want to register.
The following describes the data that will be dynamically maintained while the Home Agent is running:
HASH bindings_hash
is a hash table of valid Mobility
Bindings. See the section on Mobility Bindings.
HASH tunnels_hash
is a hash table of active tunnels. See the
section on tunnels.
MD5 was selected as the hash algorithm to be used. The design of the software allows an easy addition of optional algorithms, but MD5 is the only one taken into use in this project.
There are many publicly available implementations of MD5 algorithm and one will be chosen by the programmer responsible for implementation of the cryptographic part. The interface to the hash algorithm is simply a function that returns the hash value (128 bits of data).
void MD5_MAC(unsigned char const *key, unsigned int key_len, unsigned char const *data, unsigned int data_len, unsigned char *MAC);
The operation of the MD5_MAC() function is defined as MAC := MD5(key | data | key).
key and data are pointers to memory containing key_len and data_len bytes of data. The contents of the data is not modified by the function. MAC is a pointer to 128 bits (16 bytes) of memory to be used for the result of the calculation.
The normal operation of MD5_MAC() function is to calculate the MAC for the registration reply message sent by a mobile node and authentication of the message by foreign agents or a home agent. In addition this function is used in session key generation and in encrypting the key for the mobile node.
A publicly available RSA implementation will be selected by the programmer responsible for the implementation of the cryptographic parts of the software. A suggestion for the base code if Werner Koch's implementation of RSA (ftp://ftp.guug.de/pub/gcrypt/contrib/rsa.c). The routines use an internal presentation form of the public and private keys, but the external users of the module do not need to take this form into consideration. All the keys are provided as a binary data which can be sent to other modules.
The following functions will be used as an interface to the RSA functions.
void rsa_initialize(char const *public_key_file, char const *private_key_file); int rsa_encrypt_len(unsigned char const *public_key, unsigned int public_key_len); int rsa_encrypt_session_key(unsigned char const *session_key, unsigned char const *public_key, unsigned int public_key_len, unsigned char *encrypted_key); void rsa_decrypt_session_key(unsigned char const *encrypted_key, unsigned int encrypted_key_len, unsigned char *session_key); int rsa_get_public_key_len(void); char const *rsa_get_public_key(void);
The function rsa_initialize() reads the public and private keys of a foreign agent and prepares the system for RSA encryption and decryption. It must be called before using the other functions of the RSA module. The names of the files containing the public and private keys are given as parameters (they are obtained from the config file).
rsa_encrypt_session_key() is used to encrypt a session key with public key of the following system in the tunnel. session_key is pointer to 128 bit session key to be encrypted. public_key is a pointer to public_key_len bytes of key used in the encryption. encrypted_key is a pointer to memory containing space for the encrypted key. It must contain enough space for the encrypted data. rsa_encrypt_len() can be used to find out how much memory is needed when using a particular public key. rsa_encrypt_session_key() returns the length of the encrypted key or -1 in case the encryption failed.
rsa_decrypt_session_key() is used to decrypt an encrypted session key. encrypted_key is a pointer to memory containing encrypted_key_len bytes of encrypted data. session_key is a pointer to 16 bytes of memory used for the decrypted key.
rsa_get_public_key_len() returns the length (in bytes) of the public key read from the key file. rsa_get_public_key() returns a pointer to the public key read from the key file. This can be used to generate the foreign agent public key extension of the registration request messages. The public key is provided as binary data in a format that can be sent in the registration messages.
The following function operates as the interface to the session key generation.
void generate_session_key(unsigned char const *key, unsigned int key_len, unsigned char *session_key);
The generate_session_key() function reads 16 bytes of pseudorandom data from /dev/random and calculates session_key by calling MD5_MAC(key, key_len, random_data, 16, session_key).
key is a pointer to memory containing key_len bytes of data (session key generation secret). The contents of the data is not modified by the function. session_key is a pointer to 128 bits (16 bytes) of memory which will be filled with the new pseudorandom session key.
The session key will be encrypted with RSA for the foreign agents on the tunnel. The key will be sent also encrypted with the secret shared by the mobile node and the home agent. The encrypted version is produced with help of MD5 by calculating session_key XOR MD5(secret | session_key | secret).
Home and foreign agents keep track of registered mobile nodes with mobility bindings.
A mobility binding has the following structure:
struct mob_binding { __u32 mn_addr; /* mobile node address */ __u32 lower_addr /* other end of the lower tunnel segment */ __u32 id[2]; /* timestamp */ time_t exp_time; /* time when binding will expire */ char key[16]; /* the session key for the binding int confirmed; /* boolean value indicating if the binding is confirmed or not */ int spi; /* associated authentication method */ }
Bindings have a lifetime. The current time in seconds since
0:00:00 UTC, January 1, 1970 can be retrieved with the
time
system call (see man 2 time). The
expiration time for a binding is set in
exp_time
. When the current time is equal to or more
than exp_time
the binding should be removed.
Both foreign and home agents need to know where to forward
packets destined for the mobile node; this is indicated by the
lower_addr
field. The session key for the tunnel
is stored in the key
field. The corresponding
security parameter index for authentication method used is
stored in the spi
field. Foreign agents need an
additional field, confirmed
, to keep track of
confirmed and unconfirmed bindings.
The following functions will be used as an interface to the mobility bindings:
HASH binding_inithash(); void binding_destroyhash(HASH hash); int binding_add(HASH hash, struct mob_binding); void binding_fetch(HASH hash, __u32 mn_addr, struct mob_binding *b); int binding_delete(HASH hash, __u32 mn_addr); int binding_nextexpire(HASH hash, struct mob_binding *b);
binding_inithash()
initializes a hash table for storing
bindings. The function returns a reference that is used in
further operations on the hash table.
binding_destroyhash()
should be called to destroy a
hash table when it is not needed any more.
binding_add()
adds a binding to the hash table. The
function returns 0 on success.
binding_fetch()
fills in the mob_binding structure
if any binding for the requested mobile node is found.
binding_delete()
deletes a binding with the
specified mobile node address. The function returns 0 if a
binding was deleted.
binding_nextexpire()
gets the binding that is next
to expire. The function returns 0 if a binding is found, else -1.
The home agent, foreign agent and mobile node needs to generate tunnels. Tunnels are generated through kernel ioctl calls. A more simple interface to the tunnel device will be implemented.
This module keeps track of how many mobile nodes are handled by each
tunnel. The tunnel will only be removed when the number of
tunnel_delete
calls are equal to the
tunnel_add
calls.
The following functions will be provided:
HASH tunnel_inithash(); void tunnel_destroyhash(HASH hash); int tunnel_add(HASH hash, __u32 src_addr, __u32 dst_addr, char *device); int tunnel_delete(HASH hash, __u32 src_add, __u32 dst_addr);
The list of tunnels should be initialized with
tunnel_inithash
which returns a reference to the hash table.
The hash table is destroyed with tunnel_destroyhash
.
tunnel_add
takes as argument the end points of the
tunnel. It writes the name of the added tunnel device
to the memory location pointed
by device
. At least 8 chars have to be reserved for
device
. tunnel_add
and
tunnel_delete
both return 0 on success and -1
otherwise.
The internal data structure for the tunnel will be:
struct tunnel { char device[8]; /* tunnel device name */ __u32 dst_addr; __u32 src_addr; int ref; /* number of references to tunnel */ }
The implementation of the ip program (ip.c) in the iproute2 package could be used as an example in implementation our interface routines.
The routing module provides an interface to the advanced routing mechanisms of the kernel. This is needed for routing packets to and from the mobile node to the right tunnel devices. These routines will be used by all the main modules.
The routing module will provide the following functions:
int route_add(__u32 addr, const char *tunnel_dev) int route_del(__u32 addr, const char *tunnel_dev)
route_add
and route_del
adds and
deletes a route respectively to the mobile node with address
addr
through tunnel tunnel_dev
. Both
functions return 0 on success and -1 otherwise.
As with the tunneling module our implementation could use the ip program (ip.c) in the iproute2 package as an example implementation of our interface routines.
Arp command of net-tools manipulates the system ARP cache (see man 8
arp). An simple to use interface to the needed commands will be
implemented as a part of the home agent software. Following functions will be
provided:
int add_proxyarp_item(__u32 host_addr, char const *interface); int del_proxyarp_item(__u32 host_addr, char const *interface);
These functions correspond to the following commands: arp -Ds host_addr interface pub and arp -i interface -d host_addr, respectively. In other words, they add (or deleat) a host address to the ARP cache as a static entry that is published by the kernel (it answers the who-has questions). The implementation of the arp(8) command (i.e. arp.c in the net-tools) could be used as an example in implementing our interface routines.
Both functions return 0 for successful operations and -1 if an error occurred in the ARP cache manipulation.
#include <syslog.h> void openlog( char *ident, int option, int facility) void syslog( int priority, char *format, ...) void closelog( void )
The ident parameter includes the identity string added in beginning of each log message. It is set as home agent, foreign agent or mobile node depending on the module in question. The option parameter is set to LOG_PID which logs the process ID with each message. The facility parameter defines the type of the program logging the message. In order to be able to separate the log messages of the tunneling system to its own log file the facility parameter is made configurable. The default value for our system is LOG_LOCAL0 and it can be changed in the config file.
The openlog() function is called after the configuration file has been read. If there is a need to write some error messages before the configuration information has been read, the facility is set to LOG_LOCAL0 with an extra openlog() call just before writing the message with syslog() function.
The priority parameter defines the priority of the message. It can be used with syslogd to change the handling of messages (most important messages could be written directly to the system console and so on). The following priorities are used by the modules:
syslog(LOG_INFO, "FA=%s, MN=%s, registration request received", inet_ntoa(fa_addr), inet_ntoa(mn_addr));
This example produces following message in the system log:
Nov 30 20:00:52 hostname home agent[459]: FA=127.0.0.1, MN=10.1.2.3,
registration request received.
We will provide a configuration file parser module with sufficient functions for fetching the configuration data from the configuration file to the variables in memory.
Configuration files are described in detail in a separate Configuration file specification document, which also includes examples of the configuration files.
Structures:
struct dynamics_tunnel_info { __u32 mn_addr; /* mobile node address */ __u32 lower_addr /* other end of the lower tunnel segment */ __u32 id[2]; /* timestamp */ time_t exp_time; /* time when binding will expire */ int confirmed; /* boolean value indicating if the binding is confirmed or not */ int spi; /* associated authentication method */ }
Return Values:
Return value | Code | Description |
Success | 0 | Operation completed successfully |
Operation not permitted | -1 | This operation is not allowed in the present state |
Illegal parameters | -2 | One of the parameters was illegal |
Undefined error | -3 | The cause of error is undetermined |
Agent unreachable | -4 | Could not connect to agent. |
Timeout | -5 | Timeout while waiting reply from agent |
Insufficient buffer size | -6 | Could not return all result data, because result buffer was too small |
Operation not supported | -7 | This command is not available in agent. |
Data not available | -8 | The requested data was not available (due to current state). |
In Progress | -9 | Other blocking API call is currently in progress. |
Canceled | -10 | Operation canceled by other command |
Mode | Value |
No tunnel | 0 |
Full tunnel | 1 |
All mobility agents use similar socket interface to exchange information between agent and library functions. Functions first open socket connection and then send integer function code followed by possible parameter value. Then they will wait for results. Timeout specifies how long the function should wait for results. If Timeout is zero, function will wait forever. Results arrive in raw data, which is assigned directly to user supplied buffer. Data structures used in agents must be similar to ones used in mobility agents sending the data. To assure that all data will be received, the sending is preceded by length field.
Message format from library function to agent:
0
1
2
3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8
9 0 1
+---------------------------------------------------------------+
|Type = 0 | Function code
| Param. Length |
+---------------+---------------+---------------+---------------+
. Parameters
.
.
.
+---------------------------------------------------------------+
Type
Message type identifier, must be 0
Function code
Code value for function to perform
Param. Length
Length of additional parameters in bytes
Parameters
Additional parameters to be passed to agent.
Message format from agent to library:
0
1
2
3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8
9 0 1
+---------------------------------------------------------------+
|Type = 1 | Return value
| Data Length |
+---------------+---------------+---------------+---------------+
. Data
.
.
.
+---------------------------------------------------------------+
Type
Message type identifier, must be 1
Return Value
Return value from function call. One of the values
specified in Error values table
Param. Length
Length of additional parameters in bytes
Data
Additional result data from function call
Function | Code to send | Parameter |
Dummy | 0 | - |
get_tunnels | 1 | - |
get_tunnel_info | 2 | (int) tunnel_id |
destroy_tunnel | 3 | (int) tunnel_id; |
enable_mobile | 4 | (dw) ip_addr |
get_care_of_addr | 5 | for HA (dw) ip_addr |
get_tunneling_mode | 6 | - |
get_status | 7 | - |
connect | 8 | (int) tunneling_mode |
disconnect | 9 | - |
update_location | 10 | - |
confirm | 11 | - |
home_update | 12 | - |
Following notation is used for commands:
<parameter> User supplied parameter
value
[parameter] Optional parameter
Command | Description |
help [command] | Displays a help screen |
quit | Quit program |
enable <ip-address> | Allow the mobile to connect |
disable <ip-address> | Deny connections from the mobile |
list [interval] | Show list of active tunnels, update information after interval seconds |
show <tunnel> [interval] | Show information of specific tunnel, update information after interval seconds |
careof <mobile> | Shows careof address for the mobile |
destroy <tunnel> | Remove specified tunnel from agents tables and routing table |
Command | Description |
help [<command>] | Displays a help screen |
quit | Quit program |
list [interval] | Show list of active tunnels, update information after interval seconds |
show <tunnel> [interval] | Show information of specific tunnel, update information after interval seconds |
destroy <tunnel> | Remove specified tunnel from agents tables and routing table |
Command | Description |
help [<command>] | Displays a help screen |
quit | Quit program |
update | Trigger location update |
tunnel <mode> | Create tunnel of specified mode. For now only 'full' tunnel is allowed. |
status [interval] | Show agents status, update information after interval seconds |
disconnect | Disconnect from tunnel |
careof | Shows careof address for the mobile |
confirm | Confirm the tunnel by sending a request to HA. |
home | Inform mobile node that we are in home network. |
Command | Description |
help [<command>] | Displays a help screen |
quit | Quit program |
tunnel <mode> | Create tunnel of specified mode. For now only 'full' tunnel is allowed. |
disconnect | Disconnect from tunnel |
confirm | Confirm the tunnel by sending a request to HA. |
home | Inform mobile node that we are in home network. |
update | Trigger location update |
This section describes the three main modules, i.e. the mobile node, the foreign agent and the home agent, in greater detail.
The Mobile Node runs a simple driver code for the state machine. This driver waits for inputs coming through various socket interfaces and timer. Processing of input depends on where the data is coming from. For data coming from other mobility agent, the incoming message is first parsed and then transition function is decided depending on message type, some field values and values of current state variables.
Same message construction and parsing functions, logging functions and tunnel manipulation functions are used as in other mobility agents.
Mobile Node Signaling Part is constructed as a state machine. The inputs to state machine consist of signaling messages, API calls and timer expirations. The library monitoring functions will not affect the state machine and therefore they will be processed beside the state machine. The textual state machine describes the states and effect of inputs in each state. Graphical version presents the states and transitions between them.
Tunneling part is provided by Linux kernel. The Signaling part
will use add_tunnel(...) and remove_tunnel(...) functions to control
tunneling. This part will be similar in all mobility agents.
Support part communicates with library functions through socket
interface using methods and messages specified in API specification. This
part consists of functions which respond to the library function calls
(through socket interface), modify the agents data structures and trigger
state transitions.
Functions Connect and Confirm are blocking functions. These functions
will return their results when the machine reaches Connected state, an
error occurs (including denials of registration) or call timer expires.
Additional state variables api_call_progressing and api_call_socket are used
to identify the caller when the target state is reached. Because a call
lasts over several state changes and includes data, which affects to the
sent messages, only one call to connect or confirm is allowed to progress.
If other call to connect or confirm is made while a call is in progress,
Call_In_Progress error message is returned. Because both calls intend to
register a tunnel, the only way to cancel the API call is to use disconnect
library function. The call timeouts if the caller closes the API socket.
Command: update_location
Apply Location_Update input to state machineCommand: connect
If api_call_progressingCommand: get_status
return In Progress
Else If machine is in Disconnect state
Set API state variables to this call.
Apply input Connect to state machine.
If call timeouts
Disconnect
Return timeout.
Else return Operation not permitted.
Return: Success, Data: Current StatusCommand: disconnect
Apply Disconnect input to state machine.Command: get_care_of_addr
Return: Success
If we are connectedCommand: get_tunneling_mode
Return: Success, Data: care of addr
Else Return: Data not available
Return value: Success, Data: Full TunnelCommand: confirm
If api_call_progressingCommand: home_update
Return In Progress
Else If machine is in Connected state
Set API state variables to this call.
Apply Confirm input to state machine
Return: Success
If call timeouts
Return to Connected state
Return timeout.
Else return operation Not permitted.Note: We want to let the user to decide if tunnel should be closed, because we might just be temporarily out of radio coverage.
Apply Home_Update transition to state machine.
If state doesn't allow this input
Return: Operation not permitted.
Else Return Success
The functionality of the foreign agent is described by a textual and graphical state machine. The state machine for a single binding is showed in another diagram. Detailed C-like pseudocode is given in the file fa.c.
An SDL-like state machine of the home agent is shown as a separate picture. A fairly detailed C-like pseudocode of the home agent is in the file ha.c.
The following mobile IP implementation were investigated:
